Smart Touch Panels
in industrial design
ETOUCH 7"
Premium Smart Touch Panels
in
exclusive design
Hardware
- 4″, 5″, 7″, 10″ IPS-Display
- 24bit colour depth
- Modern touch
- Dual-Core ARM™ Cortex-A7 CPU
- ARM™ Mali400 MP2 GPU
- 4-8 Gbit DDR3
- 4-64 GB eMMC
- Optional: RGB LED
Interface
- Flush-mounted or surface-mounted wall brackets
- 230V or 10-36V AC/DC
- RS485, Ethernet, relay, universal IO
- WiFi 802.11 b/g/n
- MQTT
- Optional: NFC, Z-Wave, DALI, KNX, OpenTherm
- Amazon Alexa
- Apple HomeKit
Sensors (optional)
- Proximity sensor (ToF)
- Ambience light
- Temperature/Humidity
- VOC
- Air pressure and quality
Premium Smart Touch Panels
in
modern design
Hardware
- 4″, 7″, 10″ IPS-Display
- 24bit colour depth
- Modern Touch
- Dual-Core ARM™ Cortex-A7 CPU
- ARM™ Mali400 MP2 GPU
- 4-8 Gbit DDR3
- 4-64 GB eMMC
- Optional: RGB LED
Interface
- Flush or surface wall mounts
- 230V or 10-36V AC/DC
- RS485, Ethernet, relay, universal IO
- WiFi 802.11 b/g/n
- MQTT
- Optional: NFC, Z-Wave, DALI, KNX, OpenTherm
- Amazon Alexa
- Apple HomeKit
Sensors (optional)
- Proximity sensor (ToF)
- Ambience light
- Temperature/Humidity
- VOC
- Air pressure and quality
MTOUCH 4"
MCONTROL 7"
Premium Smart Touch Panels
in
industrial design
Hardware
- 5″, 7″, 10″ IPS-Display
- 24bit colour depth
- Modern touch
- Dual-Core ARM™ Cortex-A7 CPU
- ARM™ Mali400 MP2 GPU
- 4-8 Gbit DDR3
- 4-64 GB eMMC
- Optional: RGB LED
Interface
- Flush-mounted or surface-mounted wall brackets
- 230V or 10-36V AC/DC
- RS485, Ethernet, relay, universal IO
- WiFi 802.11 b/g/n
- MQTT
- Optional: NFC, Z-Wave, DALI, KNX, OpenTherm
- Amazon Alexa
- Apple HomeKit
Sensors (optional)
- Proximity sensor (ToF)
- Ambience light
- Temperature/Humidity
- VOC
- Air pressure and quality
MECIO CONTROLLER & MEC IO EXTENSION
CONTROLLER
Compact extensible high-performance controller with 14 inputs/outputs
EXTENSION
Extension with additional 31 inputs/outputs for the MECIO controller
Supply:
- 12-36 VDC
IO´s:
- 16 Temperature inputs
- 8 Multi IO
Interfaces:
- 1x Ethernet (10/100 Mbps)
- 2x USB 2.0
- 1x RS485
- 1x RS485 galvanic isolation
- 4 Multi IO
- 8 Temperature Inputs
- 2 Relays
MECIO
MECMETER
Current electric metering easy to install, setup, connect and receive data. MEC electronics MECMETER solves key issues with electric metering.
Technical Data
- Three phase power meter 3x230 V; 50 Hz
- Measurable current depends on current transformers, input voltage 0- 333 mV AC
- Not to be used for billing purposes (not MID compliant)
- Bi-directional meter, measuring of consumption and feed-in per phase and total sum
- Measurement per phase of
- Active power (resolution 1/10 W)
- Reactive power (resolution 1/10 var)
- Apparent power (resolution 1/10 VA)
- Active energy (resolution 1/10 Wh)
- Reactive energy (resolution 1/10 varh)
- Apparent energy (resolution 1/10 VAh)
- Phase angle (resolution 1/10°)
- Voltage (resolution 1/10 V)
- Current (resolution 1 mA)
- Frequency (resolution 1/100 Hz)
- Communication types: WiFi (internal antenna), Ethernet and Powerline (dynamic IP)
- Static IP-setting via Ethernet available
- To be mounted on top-hat rails (EN 60715) in electric distribution boxes
- Own consumption typical 2 W (3 W max.) on L3
Compatible current transformers
- 333 mV secondary voltage
- Primary amperage individually configurable
Features
- Compact
- Software updates available
- Easy communication
- Local data access
- No adjustments in the distribution cabinet
- 40+ measurements available
Environmental conditions
- Ambient temperature in operation: 0°C to +50°C
- Ambient temperature during storage: -20°C to +70°C
- Relative air humidity: 10-90% REH
- Non-condensing humidity
- Only for indoor use in closed rooms
Network connections & Interfaces
- WiFi: SSID searchormanualsetup(dynamicIP)
- PLC: Paired/unpaired(dynamicIP)
- FixedIP ordynamicIP
- MQTT
- JSON
- XML
- ModbusTCP (SunSpecbased)
Gallery

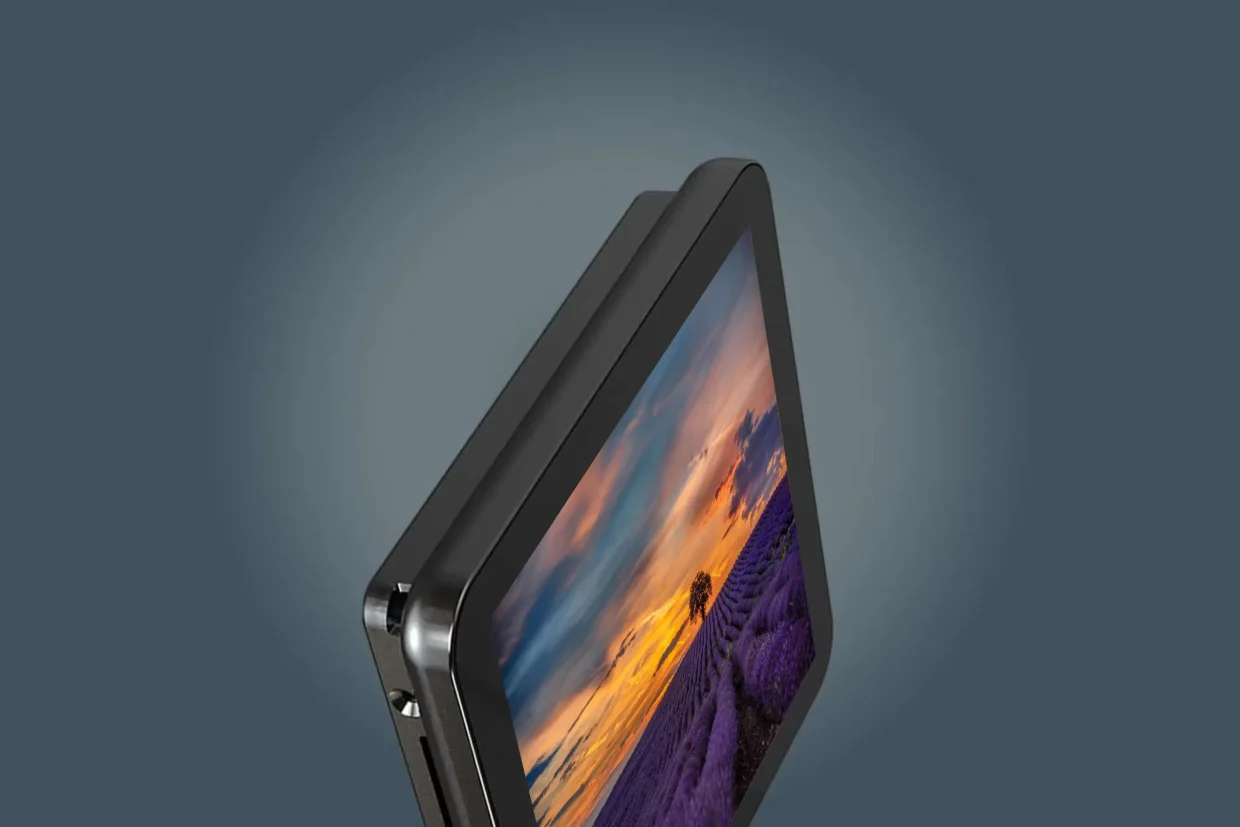

ETOUCH 4 Schwarz
ETOUCH 4″ Black

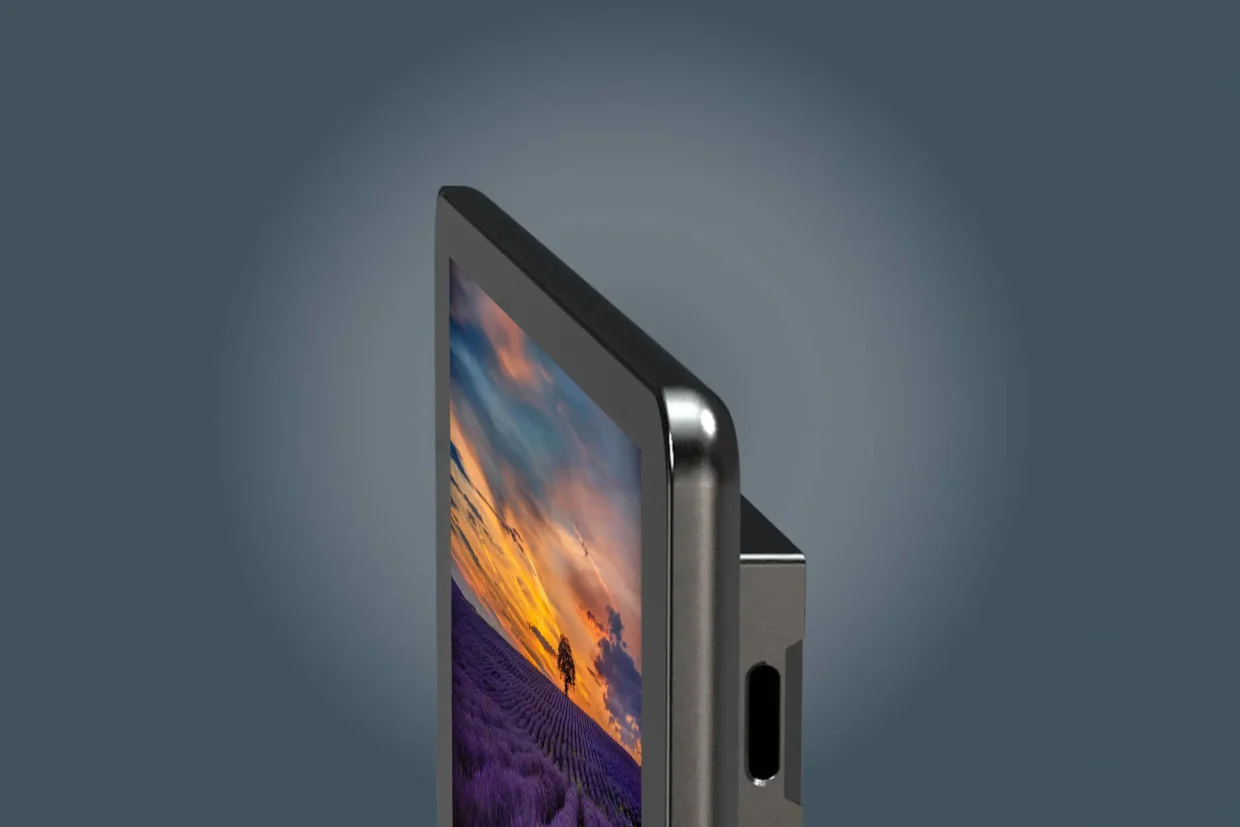

ETOUCH 7 Schwarz
ETOUCH 7″ Black

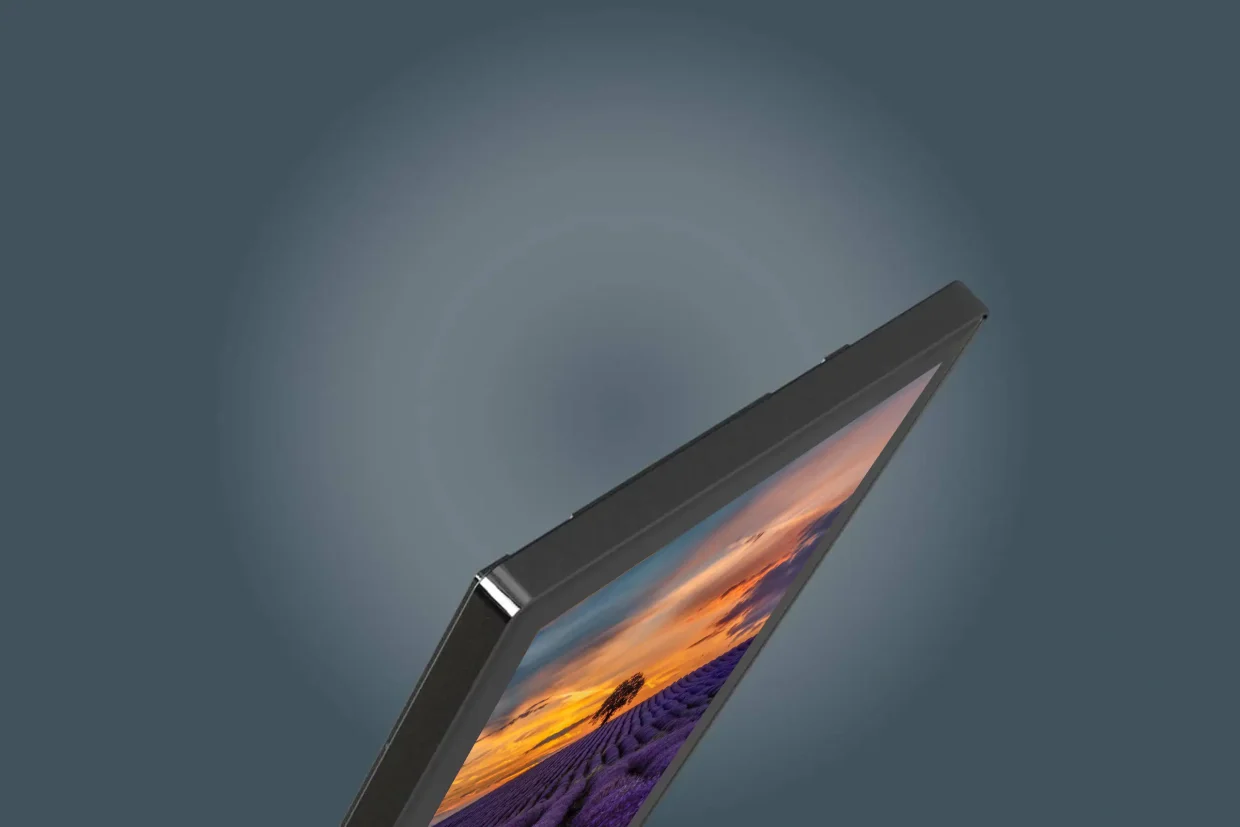

MTOUCH 7 Schwarz
MTOUCH 7″ Black

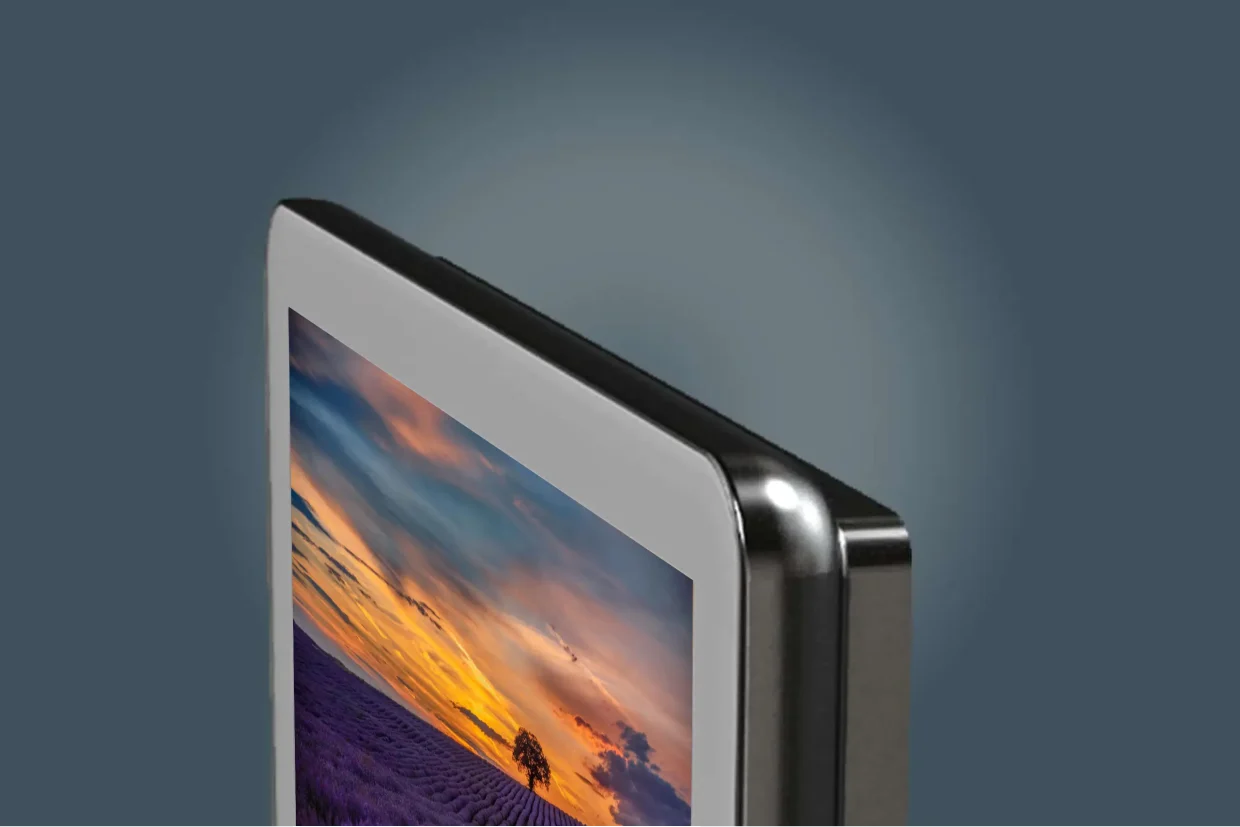

ETOUCH 5 Wei
ETOUCH 5″ White

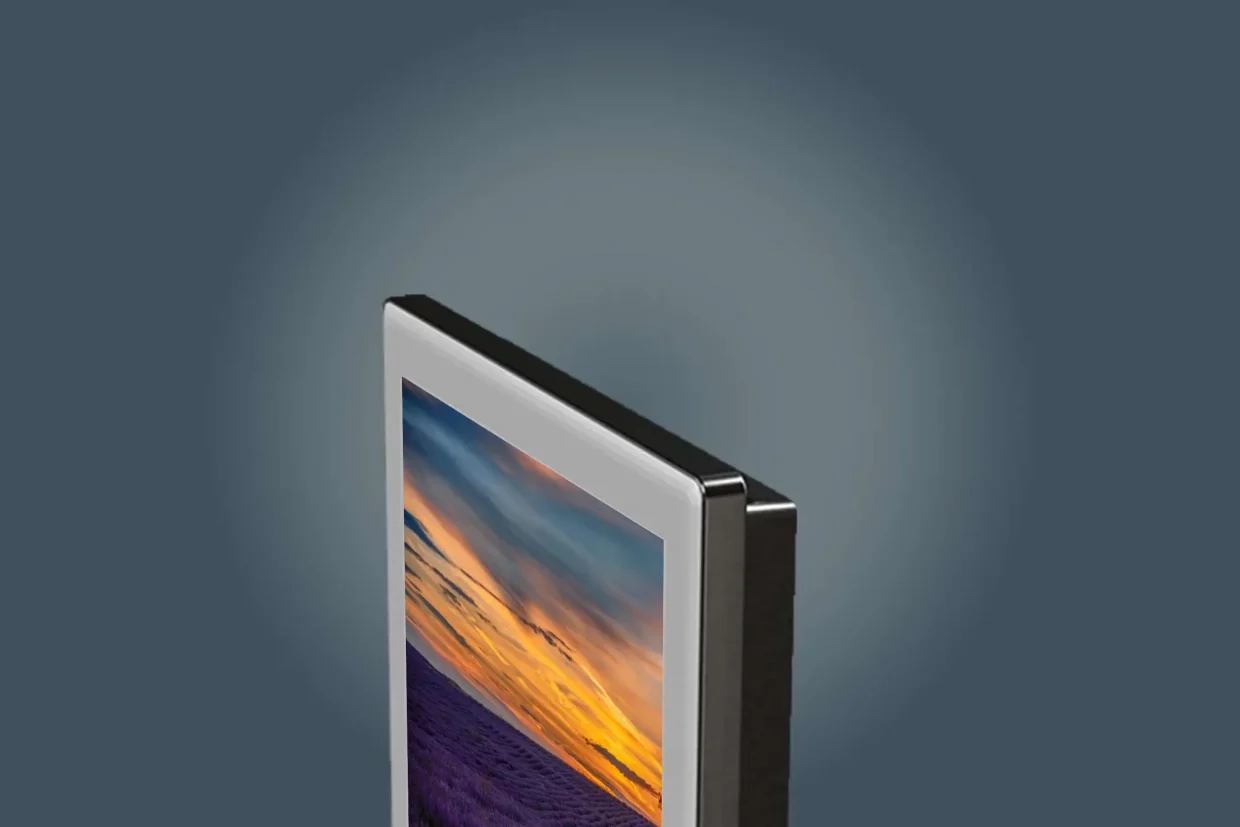

MTOUCH 4 Wei
MTOUCH 4″ White

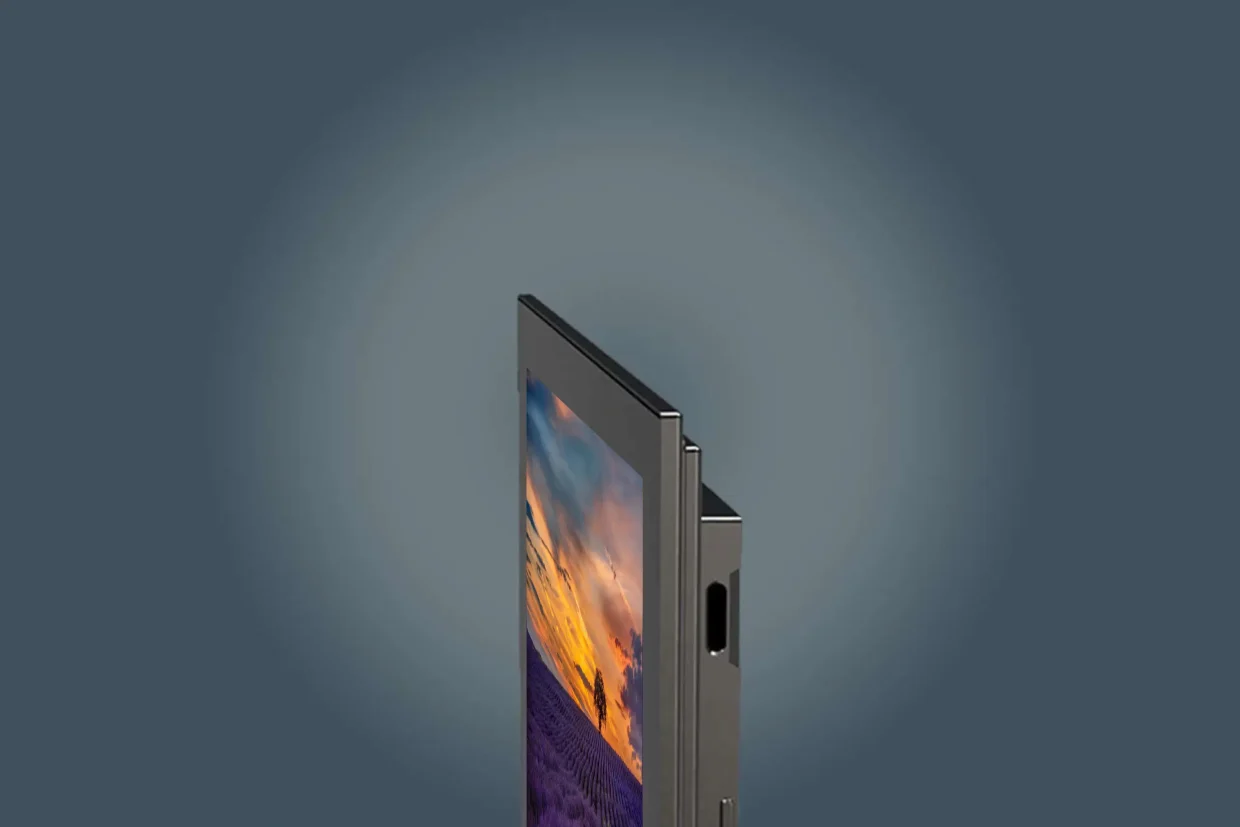

MCONTROL 7 Schwarz
MCONTROL 7″ Black
